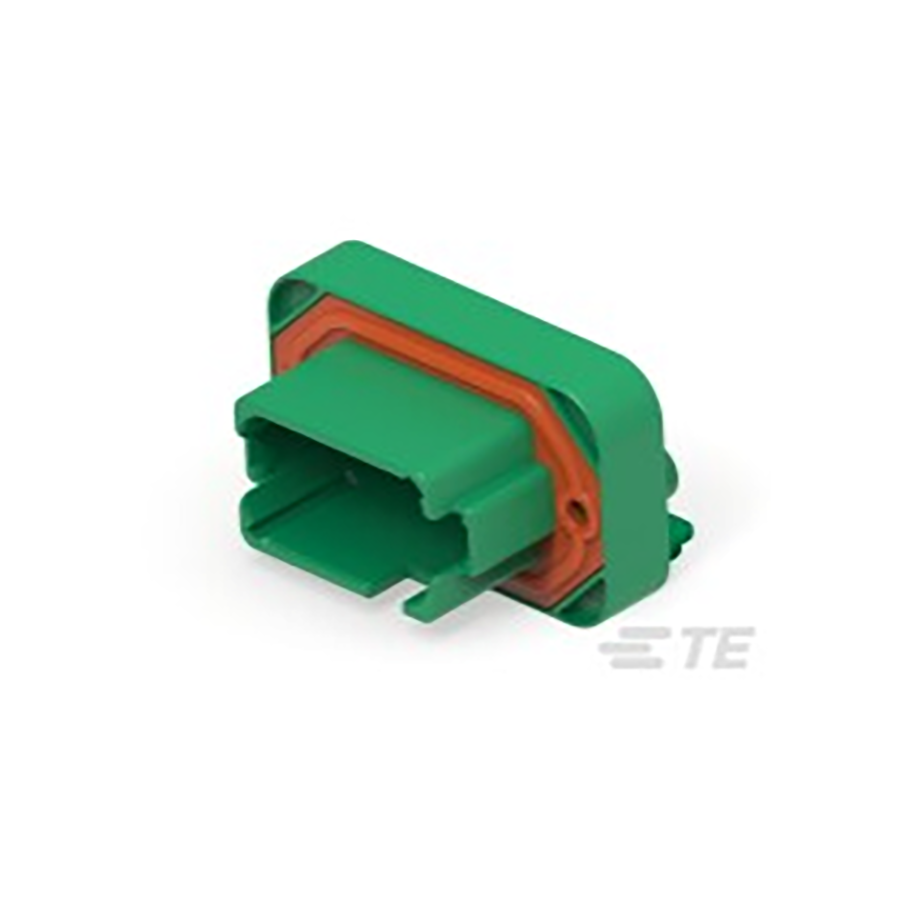

DT15-12PC-B016
Manufacturer:
TE Connectivity
Mfr.Part #:
DT15-12PC-B016
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:4.445 mm
| Parameter | Value |
|---|---|
| Length | 59.21 mm |
| Width | 35.26 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 34.82 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Nickel |
| Pitch | 4.445 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Receptacle (Female) |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 9.1186 mm |
| Housing Material | Thermoplastic |
| Housing Color | Gray |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | No |
| Termination Post Length | 3.1 mm |
Stock: 46
Distributors
pcbx
pcbxUnit Price$5.92039
Ext.Price$5.92039
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.92039 | $5.92039 |
| 10 | $5.02527 | $50.25270 |
| 25 | $4.69356 | $117.33900 |
| 50 | $4.45590 | $222.79500 |
| 100 | $4.28063 | $428.06300 |
